Choosing a hot water system? Discover the EcoPlus Hot Water Heat Pump System.
How does the EcoPlus Hot Water Heat Pump System work?
The EcoPlus Hot Water Heat Pump System heats water by transferring the heat from the surrounding air to the water, using a refrigerant. The warm gaseous refrigerant is circulated in the system via a compressor. As it passes through the compressor, its pressure rises, as does the temperature. This hot refrigerant then passes through a heat exchanger to heat the water, which is pumped to the storage tank. The heat exchanger absorbs heat from the outside air.
The system is designed to use the latest refrigeration technology. The refrigerant (CO2*) has an extremely low global warming potential (GWP**) so it allows us to keep a clean and healthy earth for future generations.
*CO2 also known as R744 refrigerant has an extremely low Global Warming Potential** and does not deplete the ozone layer.
**Global Warming Potential (GWP) is a measure of how much a given mass of greenhouse gas is estimated to contribute to global warming.
It is a relative scale which compares the gas in question to that of the same mass of carbon dioxide, whose GWP is equal to 1.
Performance & Savings
The EcoPlus Hot Water Heat Pump System delivers:
- Industry leading energy efficiency
- Innovative technology
- Fast heat recovery - it takes approx 4 hours to heat 300L water
- Industry leading quality & performance
The EcoPlus Hot Water Heat Pump System consumes 0.958kW of electricity to generate 4.5kW^^ of heat (COP = 4.69^), which equates to approx 20% of the energy used by a conventional electric system. Consequently, with the EcoPlus Hot Water Heat Pump System, you can save up to 80%* of your conventional electric hot water energy costs.
Features & Benefits
The EcoPlus Hot Water Heat Pump System is supplied as two separate components;
- Sanden Heat Pump Unit and
- Rheem Stainless Steel Storage Tank
This allows easy on-site handling and installation, as well as flexibility of the storage tank location, up to 15 metres horizontally or 3 metres vertically from the Heat Pump Unit.
Heat Pump Unit
- A high Coefficient of Performance (COP=4.69^) results in significantly reduced energy use and CO2 emissions
- Up to 50% faster heat recovery than typical heat pumps. In ambient air of 20ºC it takes approx 4 hours to heat 300L of water from 19ºC to 63ºC^^
- Uses unique ozone friendly R744(CO2) refrigerant
- Simple installation by EcoPlus approved technician
- An automatic heating cycle
- Fitted with in-built freeze protection, making it suitable for a wide range of climate conditions (-10ºC to +43ºC)
- No backup/booster element required
- Whisper quiet operation
- High quality, weather resistant construction for outdoor location
- 6 year warranty, including Parts and Labour.
Rheem Stainless Steel Tank
- 300L capacity
- High quality, stainless steel cylinder
- Fully insulated for minimal heat loss
- Mains pressure rated
- Safety pressure and temperature relief valve supplied
- 10 year Tank warranty, 6 years warranty on Parts and Labour.

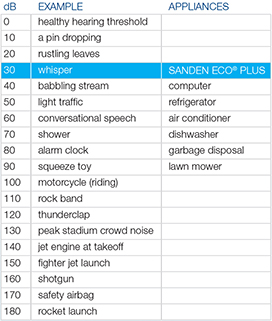

'Whisper-quiet hot water'
When purchasing a hot water heat pump, noise levels are an important consideration. Sanden's extensive research has delivered a 'whisper quiet' operating noise level (37dB) that ensures both you and your neighbours' lifestyles remains unaffected by its operation.
About Sanden
Sanden is a Japanese-owned global business, which has earned a solid reputation as a leader in the field of heating and cooling technology. Our focus is to improve the living standards of all New Zealanders, via the development of environmentally-advanced products.
Sanden has more than 50 years experience in the production and global supply of air conditioning compressors. It has applied this advanced understanding of heat transfer technologies to the home environment, resulting in the development of the Sanden EcoPlus Hot Water Heat Pump System. This highly innovative hot water system is manufactured in Japan.
^^ at 19ºC ambient /cold water inlet
^ Tested under AS/NZ5125.1:2014 requirements
